Kubernetes - ELK 日志管理
# ELK 组成
# Elasticsearch
ES 作为一个搜索型文档数据库,拥有优秀的搜索能力,以及提供了丰富的 REST API 让我们可以轻松的调用接口。
# Filebeat
Filebeat 是一款轻量的数据收集工具。
# Logstash
通过 Logstash 同样可以进行日志收集,但是若每一个节点都需要收集时,部署 Logstash 有点过重,因此这里主要用到 Logstash 的数据清洗能力,收集交给 Filebeat 去实现。
# Kibana
Kibana 是一款基于 ES 的可视化操作界面工具,利用 Kibana 可以实现非常方便的 ES 可视化操作。

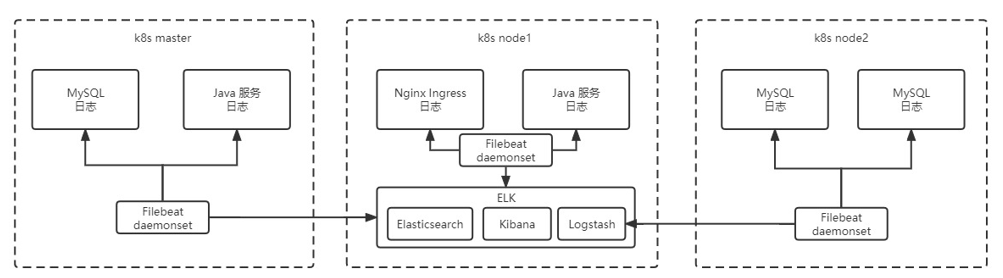

# 流程图

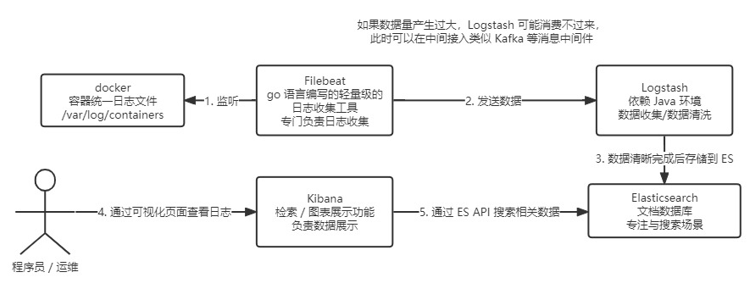

k8s 内置 Docker,而 Docker 专门有个所有容器的统一日志收集目录 /var/log/containers
,所以可以用 Filebeat 去这个目录收集容器的日志,收集后发给 Logstash(如果日志数据太大,可以先发给 Kafka 等中间件,然后 Logstash 去 Kafka 获取日志)。
Logstash 得到日志后,内部可以进行数据的清洗等操作,然后发给 ElasticSearch,接着 Kibana 通过 ElasticSearch 的 API 去 ElasticSearch 里检索日志,在页面展示给程序员、运维人员看。
Kibana 是一个 ElasticSearch 的可视化界面
如下图:
# 集成 ELK
# 部署 es 搜索服务
需要提前给 es 落盘节点打上标签
# 对应下面 es.yaml 的 127
kubectl label node <node name> es=data
2
创建 es.yaml
---
apiVersion: v1
kind: Service
metadata:
name: elasticsearch-logging
namespace: kube-logging
labels:
k8s-app: elasticsearch-logging
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
kubernetes.io/name: "Elasticsearch"
spec:
ports:
- port: 9200
protocol: TCP
targetPort: db
selector:
k8s-app: elasticsearch-logging
---
# RBAC authn and authz
apiVersion: v1
kind: ServiceAccount
metadata:
name: elasticsearch-logging
namespace: kube-logging
labels:
k8s-app: elasticsearch-logging
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: elasticsearch-logging
labels:
k8s-app: elasticsearch-logging
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
rules:
- apiGroups:
- ""
resources:
- "services"
- "namespaces"
- "endpoints"
verbs:
- "get"
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
namespace: kube-logging
name: elasticsearch-logging
labels:
k8s-app: elasticsearch-logging
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
subjects:
- kind: ServiceAccount
name: elasticsearch-logging
namespace: kube-logging
apiGroup: ""
roleRef:
kind: ClusterRole
name: elasticsearch-logging
apiGroup: ""
---
# Elasticsearch deployment itself
apiVersion: apps/v1
kind: StatefulSet # 使用 statefulset 创建 Pod
metadata:
name: elasticsearch-logging # pod 名称,使用 statefulSet 创建的 Pod 是有序号有顺序的
namespace: kube-logging # 命名空间
labels:
k8s-app: elasticsearch-logging
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
srv: srv-elasticsearch
spec:
serviceName: elasticsearch-logging # 与 svc 相关联,这可以确保使用以下 DNS 地址访问 Statefulset 中的每个 pod (es-cluster-[0,1,2].elasticsearch.elk.svc.cluster.local)
replicas: 1 # 副本数量,单节点
selector:
matchLabels:
k8s-app: elasticsearch-logging # 和 pod template 配置的 labels 相匹配
template:
metadata:
labels:
k8s-app: elasticsearch-logging
kubernetes.io/cluster-service: "true"
spec:
serviceAccountName: elasticsearch-logging
containers:
- image: docker.io/library/elasticsearch:7.9.3
name: elasticsearch-logging
resources:
# need more cpu upon initialization, therefore burstable class
limits:
cpu: 1000m
memory: 2Gi
requests:
cpu: 100m
memory: 500Mi
ports:
- containerPort: 9200
name: db
protocol: TCP
- containerPort: 9300
name: transport
protocol: TCP
volumeMounts:
- name: elasticsearch-logging
mountPath: /usr/share/elasticsearch/data/ # 挂载点
env:
- name: "NAMESPACE"
valueFrom:
fieldRef:
fieldPath: metadata.namespace
- name: "discovery.type" # 定义单节点类型
value: "single-node"
- name: ES_JAVA_OPTS # 设置 Java 的内存参数,可以适当进行加大调整
value: "-Xms512m -Xmx2g"
volumes:
- name: elasticsearch-logging
hostPath:
path: /data/es/
nodeSelector: # 如果需要匹配落盘节点可以添加 nodeSelect
es: data
tolerations:
- effect: NoSchedule
operator: Exists
# Elasticsearch requires vm.max_map_count to be at least 262144.
# If your OS already sets up this number to a higher value, feel free
# to remove this init container.
initContainers: # 容器初始化前的操作
- name: elasticsearch-logging-init
image: alpine:3.6
command: ["/sbin/sysctl", "-w", "vm.max_map_count=262144"] # 添加 mmap 计数限制,太低可能造成内存不足的错误
securityContext: # 仅应用到指定的容器上,并且不会影响 Volume
privileged: true # 运行特权容器
- name: increase-fd-ulimit
image: busybox
imagePullPolicy: IfNotPresent
command: ["sh", "-c", "ulimit -n 65536"] # 修改文件描述符最大数量
securityContext:
privileged: true
- name: elasticsearch-volume-init # es 数据落盘初始化,加上 777 权限
image: alpine:3.6
command:
- chmod
- -R
- "777"
- /usr/share/elasticsearch/data/
volumeMounts:
- name: elasticsearch-logging
mountPath: /usr/share/elasticsearch/data/
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
创建命名空间
kubectl create ns kube-logging
创建服务
kubectl create -f es.yaml
查看 pod 启用情况
kubectl get pod -n kube-logging
# 部署 logstash 数据清洗
创建 logstash.yaml 并部署服务
---
apiVersion: v1
kind: Service
metadata:
name: logstash
namespace: kube-logging
spec:
ports:
- port: 5044
targetPort: beats
selector:
type: logstash
clusterIP: None
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: logstash
namespace: kube-logging
spec:
selector:
matchLabels:
type: logstash
template:
metadata:
labels:
type: logstash
srv: srv-logstash
spec:
containers:
- image: docker.io/kubeimages/logstash:7.9.3 # 该镜像支持 arm64 和 amd64 两种架构
name: logstash
ports:
- containerPort: 5044
name: beats
command:
- logstash
- '-f'
- '/etc/logstash_c/logstash.conf'
env:
- name: "XPACK_MONITORING_ELASTICSEARCH_HOSTS"
value: "http://elasticsearch-logging:9200"
volumeMounts:
- name: config-volume
mountPath: /etc/logstash_c/
- name: config-yml-volume
mountPath: /usr/share/logstash/config/
- name: timezone
mountPath: /etc/localtime
resources: # logstash 一定要加上资源限制,避免对其他业务造成资源抢占影响
limits:
cpu: 1000m
memory: 2048Mi
requests:
cpu: 512m
memory: 512Mi
volumes:
- name: config-volume
configMap:
name: logstash-conf
items:
- key: logstash.conf
path: logstash.conf
- name: timezone
hostPath:
path: /etc/localtime
- name: config-yml-volume
configMap:
name: logstash-yml
items:
- key: logstash.yml
path: logstash.yml
---
apiVersion: v1
kind: ConfigMap
metadata:
name: logstash-conf
namespace: kube-logging
labels:
type: logstash
data:
logstash.conf: |-
input {
beats {
port => 5044
}
}
filter {
# 处理 ingress 日志
if [kubernetes][container][name] == "nginx-ingress-controller" {
json {
source => "message"
target => "ingress_log"
}
if [ingress_log][requesttime] {
mutate {
convert => ["[ingress_log][requesttime]", "float"]
}
}
if [ingress_log][upstremtime] {
mutate {
convert => ["[ingress_log][upstremtime]", "float"]
}
}
if [ingress_log][status] {
mutate {
convert => ["[ingress_log][status]", "float"]
}
}
if [ingress_log][httphost] and [ingress_log][uri] {
mutate {
add_field => {"[ingress_log][entry]" => "%{[ingress_log][httphost]}%{[ingress_log][uri]}"}
}
mutate {
split => ["[ingress_log][entry]","/"]
}
if [ingress_log][entry][1] {
mutate {
add_field => {"[ingress_log][entrypoint]" => "%{[ingress_log][entry][0]}/%{[ingress_log][entry][1]}"}
remove_field => "[ingress_log][entry]"
}
} else {
mutate {
add_field => {"[ingress_log][entrypoint]" => "%{[ingress_log][entry][0]}/"}
remove_field => "[ingress_log][entry]"
}
}
}
}
# 处理以srv进行开头的业务服务日志
if [kubernetes][container][name] =~ /^srv*/ {
json {
source => "message"
target => "tmp"
}
if [kubernetes][namespace] == "kube-logging" {
drop{}
}
if [tmp][level] {
mutate{
add_field => {"[applog][level]" => "%{[tmp][level]}"}
}
if [applog][level] == "debug"{
drop{}
}
}
if [tmp][msg] {
mutate {
add_field => {"[applog][msg]" => "%{[tmp][msg]}"}
}
}
if [tmp][func] {
mutate {
add_field => {"[applog][func]" => "%{[tmp][func]}"}
}
}
if [tmp][cost]{
if "ms" in [tmp][cost] {
mutate {
split => ["[tmp][cost]","m"]
add_field => {"[applog][cost]" => "%{[tmp][cost][0]}"}
convert => ["[applog][cost]", "float"]
}
} else {
mutate {
add_field => {"[applog][cost]" => "%{[tmp][cost]}"}
}
}
}
if [tmp][method] {
mutate {
add_field => {"[applog][method]" => "%{[tmp][method]}"}
}
}
if [tmp][request_url] {
mutate {
add_field => {"[applog][request_url]" => "%{[tmp][request_url]}"}
}
}
if [tmp][meta._id] {
mutate {
add_field => {"[applog][traceId]" => "%{[tmp][meta._id]}"}
}
}
if [tmp][project] {
mutate {
add_field => {"[applog][project]" => "%{[tmp][project]}"}
}
}
if [tmp][time] {
mutate {
add_field => {"[applog][time]" => "%{[tmp][time]}"}
}
}
if [tmp][status] {
mutate {
add_field => {"[applog][status]" => "%{[tmp][status]}"}
convert => ["[applog][status]", "float"]
}
}
}
mutate {
rename => ["kubernetes", "k8s"]
remove_field => "beat"
remove_field => "tmp"
remove_field => "[k8s][labels][app]"
}
}
output {
elasticsearch {
hosts => ["http://elasticsearch-logging:9200"]
codec => json
index => "logstash-%{+YYYY.MM.dd}" # 索引名称以 logstash+ 日志进行每日新建
}
}
---
apiVersion: v1
kind: ConfigMap
metadata:
name: logstash-yml
namespace: kube-logging
labels:
type: logstash
data:
logstash.yml: |-
http.host: "0.0.0.0"
xpack.monitoring.elasticsearch.hosts: http://elasticsearch-logging:9200
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
kubectl create -f logstash.yaml
# 部署 filebeat 数据采集
创建 filebeat.yaml 并部署
---
apiVersion: v1
kind: ConfigMap
metadata:
name: filebeat-config
namespace: kube-logging
labels:
k8s-app: filebeat
data:
filebeat.yml: |-
filebeat.inputs:
- type: container
enable: true
paths:
- /var/log/containers/*.log # 这里是 filebeat 采集挂载到 pod 中的日志目录
processors:
- add_kubernetes_metadata: # 添加 k8s 的字段用于后续的数据清洗
host: ${NODE_NAME}
matchers:
- logs_path:
logs_path: "/var/log/containers/"
# output.kafka: # 如果日志量较大,es 中的日志有延迟,可以选择在 filebeat 和 logstash 中间加入 kafka
# hosts: ["kafka-log-01:9092", "kafka-log-02:9092", "kafka-log-03:9092"]
# topic: 'topic-test-log'
# version: 2.0.0
output.logstash: # 因为还需要部署 logstash 进行数据的清洗,因此 filebeat 是把数据推到 logstash 中
hosts: ["logstash:5044"]
enabled: true
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: filebeat
namespace: kube-logging
labels:
k8s-app: filebeat
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: filebeat
labels:
k8s-app: filebeat
rules:
- apiGroups: [""] # "" indicates the core API group
resources:
- namespaces
- pods
verbs: ["get", "watch", "list"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: filebeat
subjects:
- kind: ServiceAccount
name: filebeat
namespace: kube-logging
roleRef:
kind: ClusterRole
name: filebeat
apiGroup: rbac.authorization.k8s.io
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: filebeat
namespace: kube-logging
labels:
k8s-app: filebeat
spec:
selector:
matchLabels:
k8s-app: filebeat
template:
metadata:
labels:
k8s-app: filebeat
spec:
serviceAccountName: filebeat
terminationGracePeriodSeconds: 30
containers:
- name: filebeat
image: docker.io/kubeimages/filebeat:7.9.3 # 该镜像支持 arm64 和 amd64 两种架构
args: [
"-c", "/etc/filebeat.yml",
"-e","-httpprof","0.0.0.0:6060"
]
#ports:
# - containerPort: 6060
# hostPort: 6068
env:
- name: NODE_NAME
valueFrom:
fieldRef:
fieldPath: spec.nodeName
- name: ELASTICSEARCH_HOST
value: elasticsearch-logging
- name: ELASTICSEARCH_PORT
value: "9200"
securityContext:
runAsUser: 0
# If using Red Hat OpenShift uncomment this:
#privileged: true
resources:
limits:
memory: 1000Mi
cpu: 1000m
requests:
memory: 100Mi
cpu: 100m
volumeMounts:
- name: config # 挂载的是 filebeat 的配置文件
mountPath: /etc/filebeat.yml
readOnly: true
subPath: filebeat.yml
- name: data # 持久化 filebeat 数据到宿主机上
mountPath: /usr/share/filebeat/data
- name: varlibdockercontainers # 这里主要是把宿主机上的源日志目录挂载到filebeat容器中,如果没有修改 docker 或者 containerd 的 runtime 进行了标准的日志落盘路径,可以把 mountPath 改为 /var/lib
mountPath: /var/lib
readOnly: true
- name: varlog # 这里主要是把宿主机上 /var/log/pods和/var/log/containers 的软链接挂载到 filebeat 容器中
mountPath: /var/log/
readOnly: true
- name: timezone
mountPath: /etc/localtime
volumes:
- name: config
configMap:
defaultMode: 0600
name: filebeat-config
- name: varlibdockercontainers
hostPath: # 如果没有修改docker或者containerd的runtime进行了标准的日志落盘路径,可以把path改为/var/lib
path: /var/lib
- name: varlog
hostPath:
path: /var/log/
# data folder stores a registry of read status for all files, so we don't send everything again on a Filebeat pod restart
- name: inputs
configMap:
defaultMode: 0600
name: filebeat-inputs
- name: data
hostPath:
path: /data/filebeat-data
type: DirectoryOrCreate
- name: timezone
hostPath:
path: /etc/localtime
tolerations: #加入容忍能够调度到每一个节点
- effect: NoExecute
key: dedicated
operator: Equal
value: gpu
- effect: NoSchedule
operator: Exists
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
kubectl create -f filebeat.yaml
# 部署 kibana 可视化界面
此处有配置 kibana 访问域名,如果没有域名则需要在本机配置 hosts
192.168.199.28 kibana.youngkbt.cn
创建 kibana.yaml 并创建服务
---
apiVersion: v1
kind: ConfigMap
metadata:
namespace: kube-logging
name: kibana-config
labels:
k8s-app: kibana
data:
kibana.yml: |-
server.name: kibana
server.host: "0"
i18n.locale: zh-CN # 设置默认语言为中文
elasticsearch:
hosts: ${ELASTICSEARCH_HOSTS} # es 集群连接地址,由于我这都都是 k8s 部署且在一个 ns 下,可以直接使用 service name 连接
---
apiVersion: v1
kind: Service
metadata:
name: kibana
namespace: kube-logging
labels:
k8s-app: kibana
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
kubernetes.io/name: "Kibana"
srv: srv-kibana
spec:
type: NodePort
ports:
- port: 5601
protocol: TCP
targetPort: ui
selector:
k8s-app: kibana
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: kibana
namespace: kube-logging
labels:
k8s-app: kibana
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
srv: srv-kibana
spec:
replicas: 1
selector:
matchLabels:
k8s-app: kibana
template:
metadata:
labels:
k8s-app: kibana
spec:
containers:
- name: kibana
image: docker.io/kubeimages/kibana:7.9.3 # 该镜像支持 arm64 和 amd64 两种架构
resources:
# need more cpu upon initialization, therefore burstable class
limits:
cpu: 1000m
requests:
cpu: 100m
env:
- name: ELASTICSEARCH_HOSTS
value: http://elasticsearch-logging:9200
ports:
- containerPort: 5601
name: ui
protocol: TCP
volumeMounts:
- name: config
mountPath: /usr/share/kibana/config/kibana.yml
readOnly: true
subPath: kibana.yml
volumes:
- name: config
configMap:
name: kibana-config
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: kibana
namespace: kube-logging
spec:
ingressClassName: nginx
rules:
- host: kibana.youngkbt.cn
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: kibana
port:
number: 5601
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
kubectl create -f kibana.yaml
# Kibana 配置
进入 Kibana 界面,打开菜单中的 Stack Management 可以看到采集到的日志。
避免日志越来越大,占用磁盘过多,进入 索引生命周期策略 界面点击 创建策略 按钮。
- 设置策略名称为
logstash-history-ilm-policy
- 关闭热阶段
- 开启删除阶段,设置保留天数为 7 天
保存配置
为了方便在 discover 中查看日志,选择 索引模式 然后点击 创建索引模式 按钮。
索引模式名称 里面配置
logstash-*
点击下一步
时间字段 选择
@timestamp
点击 创建索引模式 按钮
由于部署的单节点,产生副本后索引状态会变成 yellow,打开 dev tools,取消所有索引的副本数
PUT _all/_settings
{
"number_of_replicas": 0
}
2
3
4
为了标准化日志中的 map 类型,以及解决链接索引生命周期策略,我们需要修改默认模板
PUT _template/logstash
{
"order": 1,
"index_patterns": [
"logstash-*"
],
"settings": {
"index": {
"lifecycle" : {
"name" : "logstash-history-ilm-policy"
},
"number_of_shards": "2",
"refresh_interval": "5s",
"number_of_replicas" : "0"
}
},
"mappings": {
"properties": {
"@timestamp": {
"type": "date"
},
"applog": {
"dynamic": true,
"properties": {
"cost": {
"type": "float"
},
"func": {
"type": "keyword"
},
"method": {
"type": "keyword"
}
}
},
"k8s": {
"dynamic": true,
"properties": {
"namespace": {
"type": "keyword"
},
"container": {
"dynamic": true,
"properties": {
"name": {
"type": "keyword"
}
}
},
"labels": {
"dynamic": true,
"properties": {
"srv": {
"type": "keyword"
}
}
}
}
},
"geoip": {
"dynamic": true,
"properties": {
"ip": {
"type": "ip"
},
"latitude": {
"type": "float"
},
"location": {
"type": "geo_point"
},
"longitude": {
"type": "float"
}
}
}
}
},
"aliases": {}
}
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
最后即可通过 discover 进行搜索了。
