YonYou - Client端开发原创

# UAP创建生成

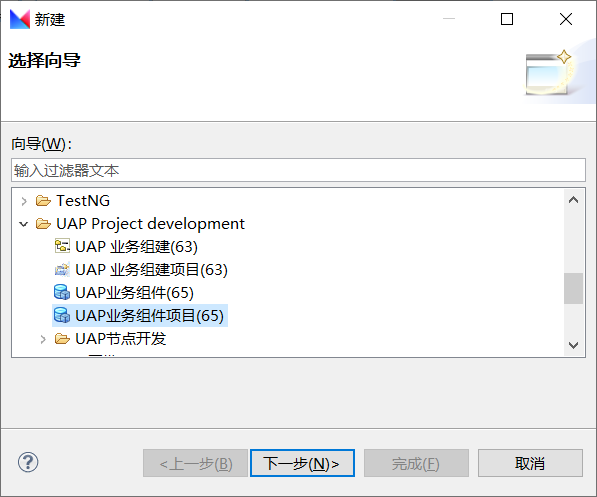

启动「UAP-STUDIO」，【文件】->【新建】->【其他】->【UAP Project development】->【UAP 业务项目】。创建过程的模板选择 ftpub。

接着继续创建「UAP 业务组件项目」。

image-20220303174143608

【窗口】->【显示视图】->【其他】，打开 MDP 透视图。

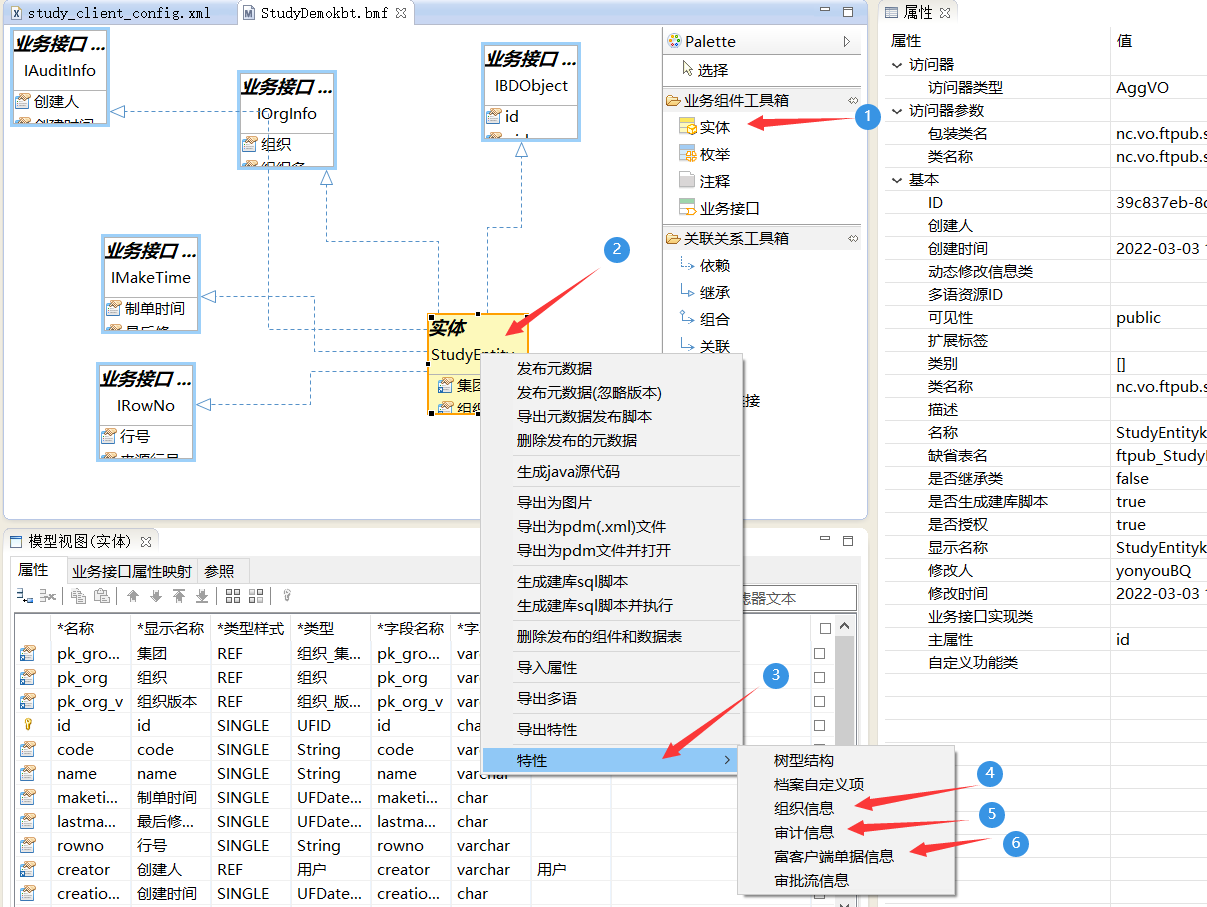

对刚刚创建的 UAP 业务组件项目右键：新建实体组件，接着创建一个「实体」，并右键实体，找到特性，分别选择「组织信息、审计信息、富客户端单据信息」。

image-20220303174445002

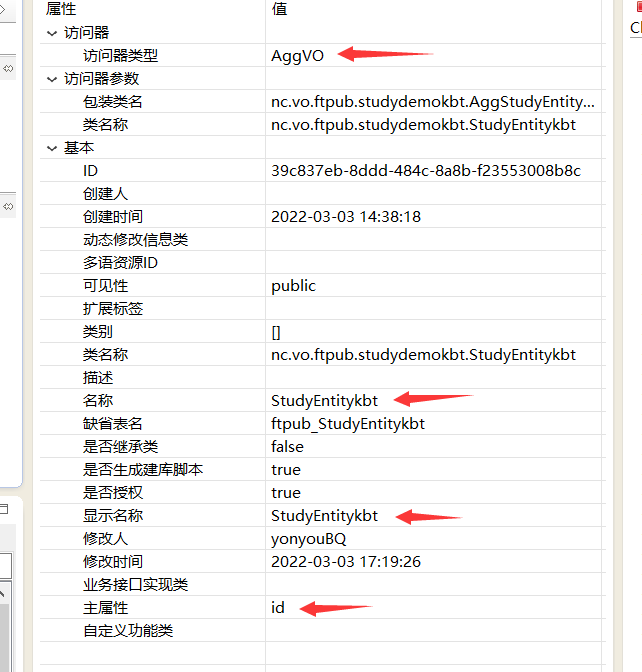

  • 左键点击实体，在右边的「访问器类型」选择 AggVO，修改名称、显示名称，主属性选择 id

    image-20220303174842484

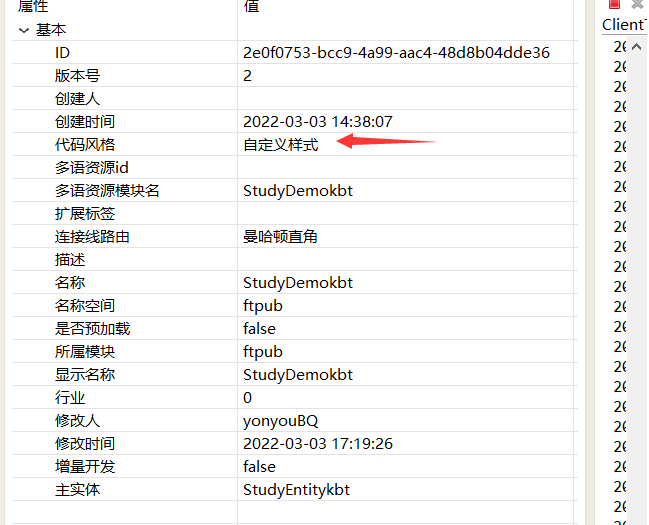

  • 左键点击空白处，在右边的「代码风格」选择自定义样式

    image-20220303174854805

  • 最后右键「发布元数据」，然后「生成 java 代码」

# 前端配置

回到项目，「UAP 中间件服务器」运行，运行成功后，再次在相同的位置「UAP 客户端」运行，来到了前端。

前端流程：

  • 功能注册
  • 菜单注册
  • 菜单授权
  • 单据模板初始化
  • 查询模板初始化
  • 默认模板输出

image-20220303215058224

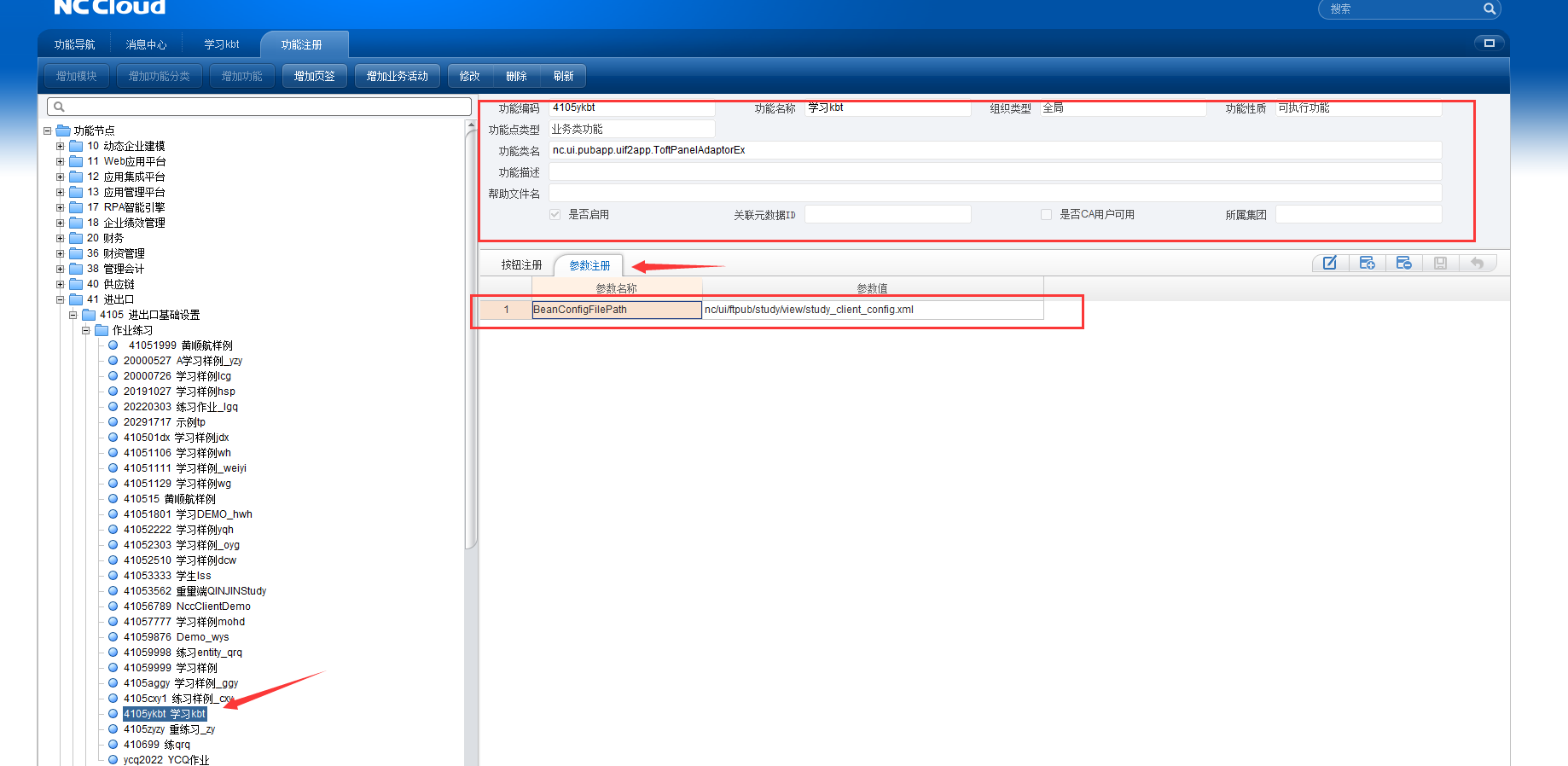

# 功能注册

image-20220303215012270

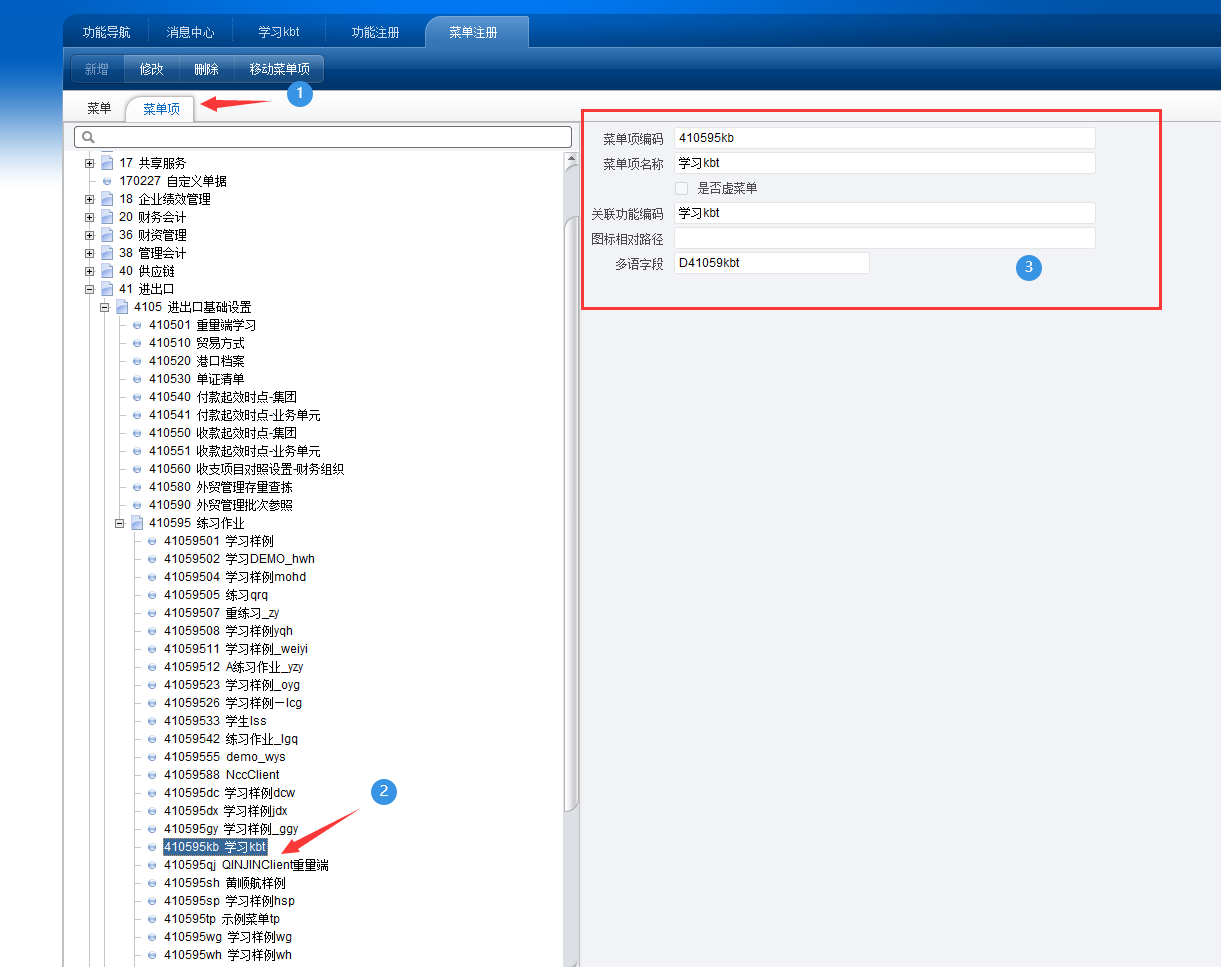

# 菜单注册

image-20220303215136734

# 菜单授权

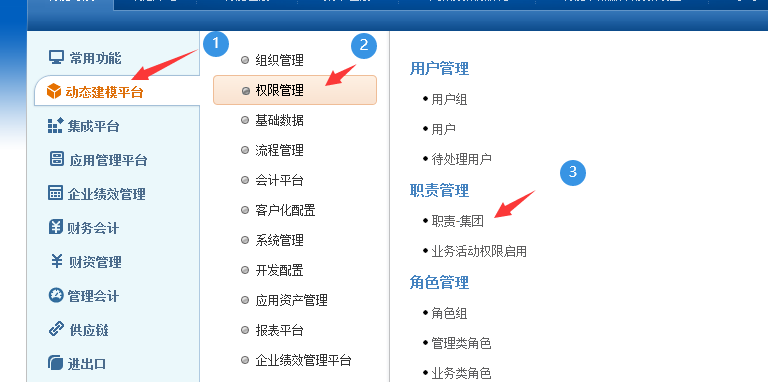

【动态建模平台】->【权限管理】->【职责-集团】，进入权限管理。

image-20220303215526682

首先点击查询，然后确定，就会查出很多的数据，点击末页，找到 yongyou_qq，打开。

image-20220303215718665

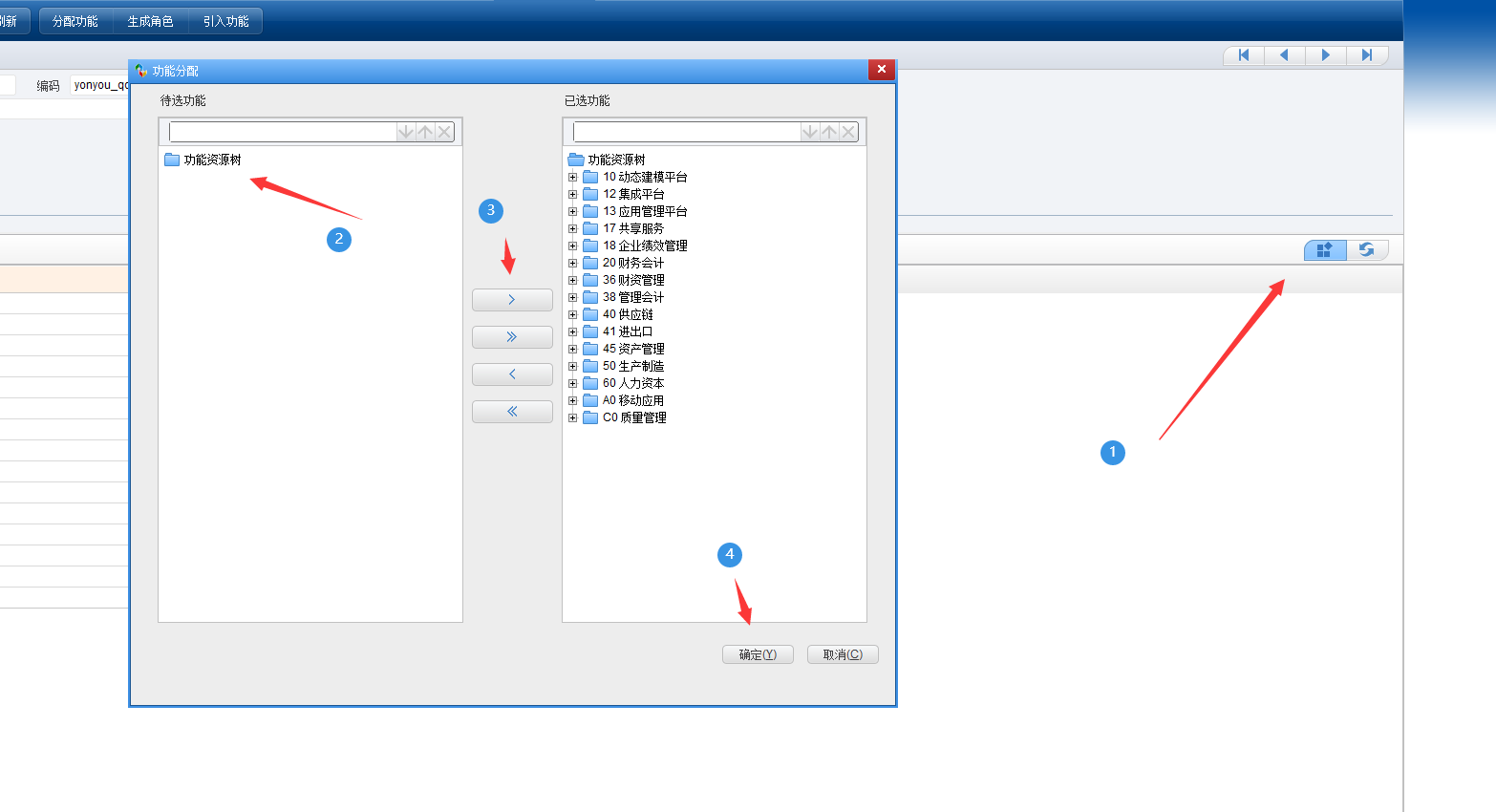

然后把自己的菜单添加到右边。

image-20220303215747167

# 单据模板初始化

搜索发布的实体，添加。

image-20220303215935610

# 查询模板初始化

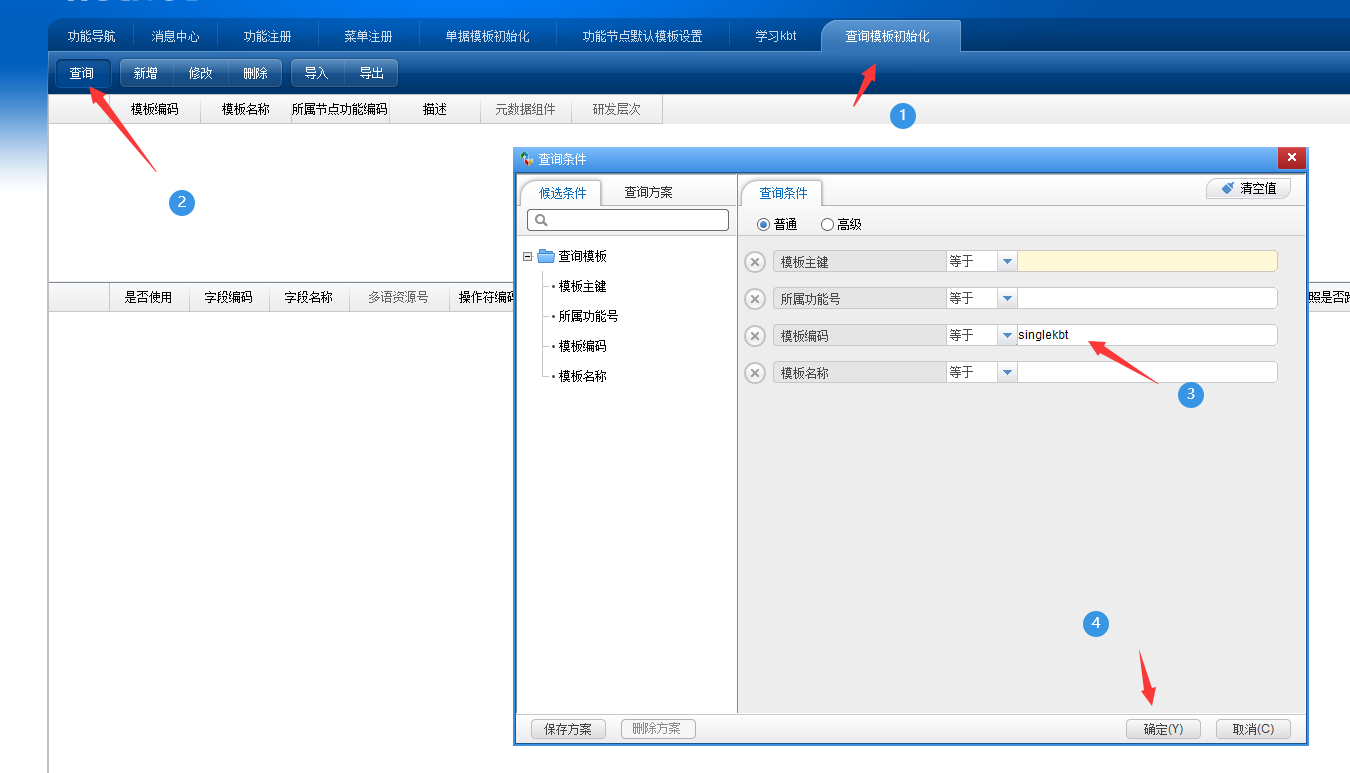

查询自己的模板编码。

image-20220303220021334

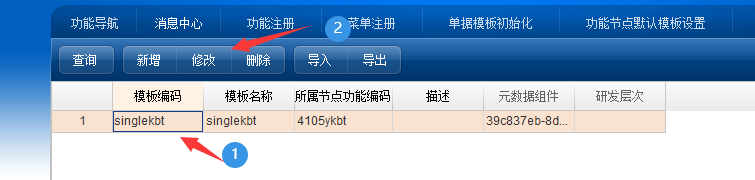

进入修改界面，添加数据。

image-20220303220044754

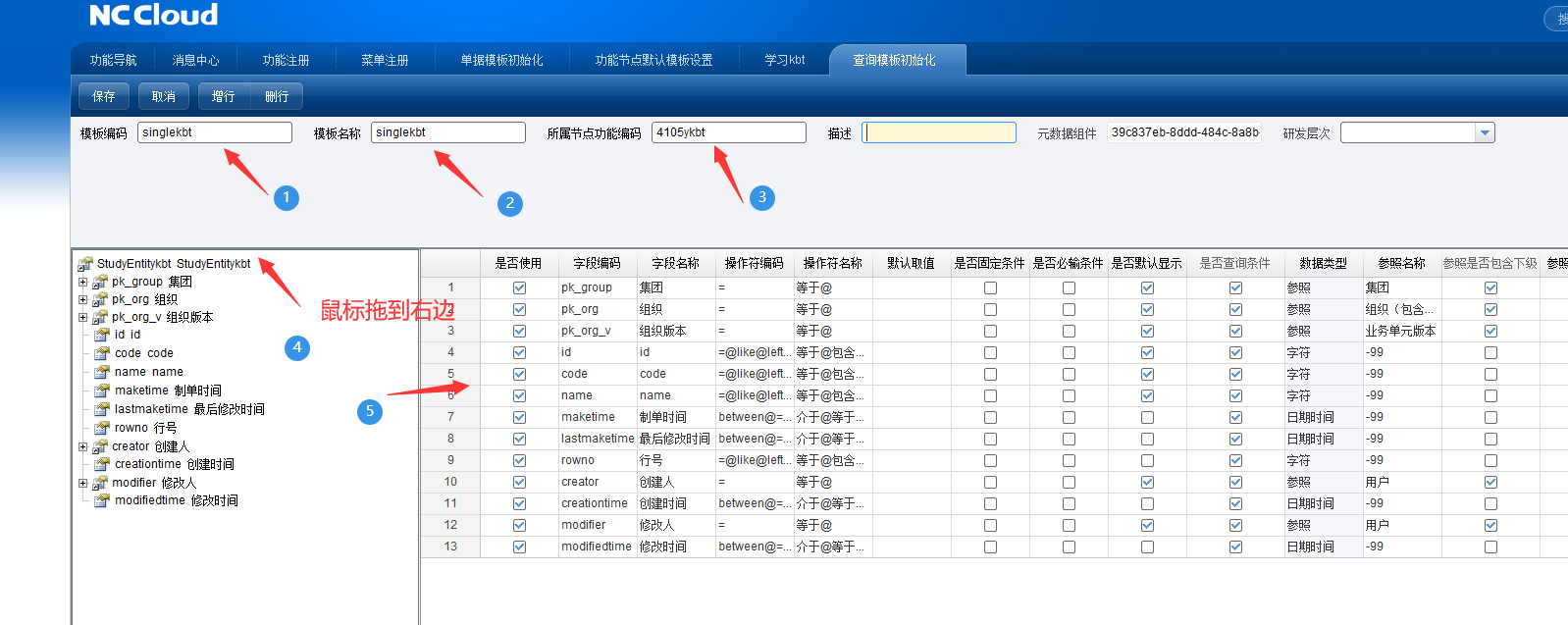

输入模板的信息，并且将数据库的字段拖到右边。

image-20220303220142874

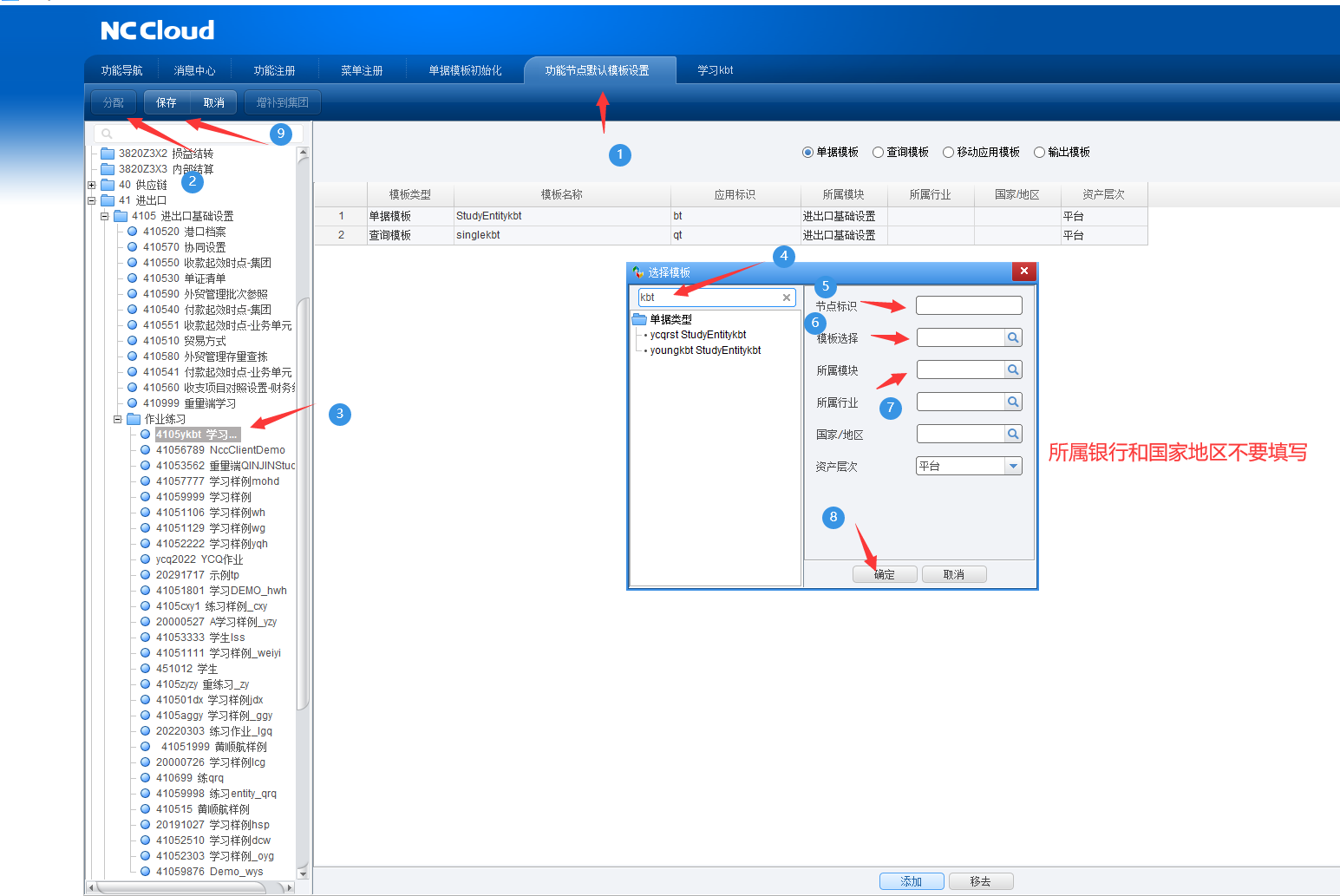

# 功能节点默认模板输出

所属银行和国家地区不需要填写。

image-20220303220315335

# 后端配置

在前面我们已经创建了元数据的 Java 类，有三个：Agg 类、Agg 菜单类、实体类。

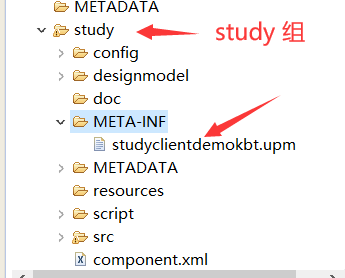

先看看后端的目录结构：

image-20220304091602190

# 配置文件

配置文件类似于 Spring 的 xml，配置前端 URL 对应的处理类（Controller），这边是叫 Action。

当前端发送 URL 请求，则会在该文件找到与请求对应的 Action 类。

<?xml version="1.0" encoding="GBK"?>

<!DOCTYPE beans PUBLIC "-//SPRING//DTD BEAN//EN" "http://www.springframework.org/dtd/spring-beans.dtd">

<beans>

    <!-- 环境变量 -->
    <bean id="context" class="nc.vo.uif2.LoginContext"></bean>

    <!-- 模型部分配置*********************************************************** -->

    <!-- 应用服务类，负责进行模型操作的处理 -->
    <bean id="bmModelModelService" class="nc.ui.ftpub.study.serviceproxy.AceStudyKbtClientServiceProxy"/>


    <!-- 对象转换器工厂，由此获取操作对象的特征信息 -->
    <bean id="BOAdapterFactory" class="nc.vo.bd.meta.GeneralBDObjectAdapterFactory">
        <property name="mode" value="MD"/>
    </bean>


    <!-- 层次结构构造策略 -->

    <!-- 模型元素 -->
    <!--========= 模型元素：[PUBAPP平面模型(BillManageModel)实例对象] ==========-->
    <bean id="bmModel" class="nc.ui.pubapp.uif2app.model.BillManageModel">
        <property name="context"><ref bean="context"/></property>
        <property name="businessObjectAdapterFactory"><ref bean="BOAdapterFactory"/></property>
    </bean>


    <!-- 数据模型管理器，主要负责各种方式的模型初始化 -->
    <bean id="bmModelModelDataManager" class="nc.ui.pubapp.uif2app.query2.model.ModelDataManager">
        <property name="model"><ref bean="bmModel"/></property>
        <property name="service"><ref bean="bmModelModelService" /></property>
    </bean>


    <!-- Mediator，模型之间监听关系部分 -->


    <!-- 组织面板//newadd -->

    <!-- 卡片界面的工具栏和返回按钮 -->


    <!-- 模板容器，负责对模板的统一装载 -->
    <bean id="templateContainer" class="nc.ui.pubapp.uif2app.view.TemplateContainer"  init-method="load">
        <property name="context" ref="context"/>
        <property name="nodeKeies">
            <list>
                <value>bt</value>
            </list>
        </property>
    </bean>


    <!-- 界面元素 ***********************************************************-->
    <!--====== 视图元素：[查询区域控件实例对象] ==============-->
    <bean id="viewa" class="nc.ui.pubapp.uif2app.tangramlayout.UEQueryAreaShell" init-method="initUI">
        <property name="queryAreaCreator" ref="defaultQueryAction" />
    </bean>

    <!--====== 视图元素：[PUBAPP列表视图控件(ShowUpableBillListView)实例对象] ==============-->
    <bean id="billListView" class="nc.ui.pubapp.uif2app.view.ShowUpableBillListView" init-method="initUI">
        <property name="model"><ref bean="bmModel" /></property>
        <property name="nodekey" value="bt" />
        <!-- 		<property name="multiSelectionMode" value="1"/> -->
        <!-- 		<property name="multiSelectionEnable" value="true" /> -->
        <property name="templateContainer" ref="templateContainer"/>
        <property name="showTotalLine" value="true" />
    </bean>

    <!--====== 视图元素：[卡片界面工具栏和返回按钮控件实例对象] ==============-->
    <bean id="viewb" class="nc.ui.pubapp.uif2app.tangramlayout.UECardLayoutToolbarPanel" >
        <property name="model"><ref bean="bmModel" /></property>
        <property name="actions">
            <list>
                <ref bean="actionsBarSeparator" />
                <ref bean="firstLineAction" />
                <ref bean="preLineAction" />
                <ref bean="nextLineAction" />
                <ref bean="lastLineAction" />
                <ref bean="actionsBarSeparator" />
            </list>
        </property>
        <property name="titleAction">
            <bean id="returnAction" class="nc.ui.pubapp.uif2app.actions.UEReturnAction">
                <property name="goComponent" ref="billListView" />
                <property name="saveAction" ref="saveScriptAction" />
                <property name="model" ref="bmModel" />
            </bean>
        </property>
    </bean>
    <bean id="actionsBarSeparator" class="nc.ui.pub.beans.ActionsBar$ActionsBarSeparator" />


    <!-- 浏览按钮 卡片界面共享信息按钮-->
    <bean id="firstLineAction" class="nc.ui.uif2.actions.FirstLineAction">
        <property name="model" ref="bmModel" />
    </bean>
    <bean id="nextLineAction" class="nc.ui.uif2.actions.NextLineAction">
        <property name="model" ref="bmModel" />
    </bean>
    <bean id="preLineAction" class="nc.ui.uif2.actions.PreLineAction">
        <property name="model" ref="bmModel" />
    </bean>
    <bean id="lastLineAction" class="nc.ui.uif2.actions.LastLineAction">
        <property name="model" ref="bmModel" />
    </bean>

    <!--====== 视图元素：[PUBAPP表单控件(ShowUpableBillForm)实例对象] ==============-->
    <bean id="billForm" class="nc.ui.pubapp.uif2app.view.ShowUpableBillForm" init-method="initUI">
        <property name="model"><ref bean="bmModel" /></property>
        <property name="showOrgPanel" value="false" />
        <property name="nodekey" value="bt" />
    </bean>


    <!-- 界面布局总装*********************************************************** -->
    <bean id="container" class="nc.ui.uif2.TangramContainer" init-method="initUI">
        <property name="tangramLayoutRoot">
            <bean class="nc.ui.uif2.tangramlayout.node.TBNode">
                <property name="tabs">
                    <list>
                        <bean class="nc.ui.uif2.tangramlayout.node.HSNode">
                            <property name="left">
                                <bean class="nc.ui.uif2.tangramlayout.node.CNode">
                                    <property name="component">
                                        <ref bean="viewa" />
                                    </property>
                                </bean>
                            </property>
                            <property name="right">
                                <bean class="nc.ui.uif2.tangramlayout.node.CNode">
                                    <property name="component">
                                        <ref bean="billListView" />
                                    </property>
                                </bean>
                            </property>
                            <property name="dividerLocation" value="215.0f" />
                            <property name="name" value="列表" />
                        </bean>
                        <bean class="nc.ui.uif2.tangramlayout.node.VSNode">
                            <property name="up">
                                <bean class="nc.ui.uif2.tangramlayout.node.CNode">
                                    <property name="component">
                                        <ref bean="viewb" />
                                    </property>
                                </bean>
                            </property>
                            <property name="down">
                                <bean class="nc.ui.uif2.tangramlayout.node.CNode">
                                    <property name="component">
                                        <ref bean="billForm" />
                                    </property>
                                </bean>
                            </property>
                            <property name="dividerLocation" value="43.0f" />
                            <property name="name" value="卡片" />
                        </bean>
                    </list>
                </property>
                <property name="name" value="cardLayout" />
                <property name="showMode" value="CardLayout" />
            </bean>

        </property>
        <property name="actions">
            <list>
                <ref bean="addAction" />
                <ref bean="editAction" />
                <ref bean="deleteScriptAction" />
                <ref bean="defaultQueryAction" />
                <ref bean="separatorAction" />
                <ref bean="defaultRefreshAction" />
                <ref bean="separatorAction" />
                <!-- 				<ref bean="defAction"/> -->

            </list>
        </property>

        <property name="editActions">
            <list>
                <ref bean="saveScriptAction" />
                <ref bean="cancelAction" />

            </list>
        </property>

        <property name="model">
            <ref bean="bmModel" />
        </property>
        <!--
  <property name="model">
   <ref bean="$vmObject.topActionDependModel"/>
  </property>
  -->
    </bean>

    <!-- 打开节点监听 newadd-->
    <bean id="InitDataListener" class="nc.ui.pubapp.uif2app.model.DefaultFuncNodeInitDataListener">
        <property name="model" ref="bmModel"/>
        <property name="context" ref="context"></property>
        <property name="voClassName" value="nc.vo.nccclient.study_client.AggStudyDemo"/>
    </bean>



    <!-- ClosingListener 编辑态关闭节点时提示是否保存//newadd***************************************************-->
    <!-- 节点关闭前校验 -->
    <bean id="ClosingListener" class="nc.ui.pubapp.common.validateservice.ClosingCheck" >
        <property name="model" ref="bmModel" />
        <property name="saveAction" ref="saveScriptAction" />
    </bean>


    <!-- 事件监听newadd -->
    <bean id="bmModelEventMediator" class="nc.ui.pubapp.uif2app.model.AppEventHandlerMediator">
        <property name="model" ref="bmModel" />
        <property name="handlerGroup">
            <list>
                <!-- nc.ui.pubapp.uif2app.event.OrgChangedEvent -->
                <!-- 				<bean class="nc.ui.pubapp.uif2app.event.EventHandlerGroup"> -->
                <!-- 					<property name="event" value="nc.ui.pubapp.uif2app.event.OrgChangedEvent" /> -->
                <!-- 					<property name="handler"> -->
                <!-- 						<bean class="nc.ui.ftpub.study.handler.AceOrgChangeHandler" > -->
                <!-- 							<property name="billForm" ref="billForm" /> -->
                <!-- 						</bean> -->
                <!-- 					</property> -->
                <!-- 				</bean> -->
                <!-- nc.ui.pubapp.uif2app.event.billform.AddEvent -->
                <!-- 				<bean class="nc.ui.pubapp.uif2app.event.EventHandlerGroup"> -->
                <!-- 					<property name="event" value="nc.ui.pubapp.uif2app.event.billform.AddEvent" /> -->
                <!-- 					<property name="handler"> -->
                <!-- 						<bean class="nc.ui.ftpub.study.handler.AceAddHandler" /> -->
                <!-- 					</property> -->
                <!-- 				</bean> -->

            </list>
        </property>
    </bean>

    <!--懒加载信息配置*******************************************************-->


    <!-- 行号自动处理 -->
    <!-- 	<bean id="rowNoMediator" class="nc.ui.pubapp.uif2app.view.RowNoMediator"> -->
    <!-- 		<property name="model" ref="bmModel" /> -->
    <!-- 		<property name="editor" ref="billForm" /> -->
    <!-- 	</bean> -->
    <!-- 双击列表行后显示卡片 -->
    <bean id="mouseClickShowPanelMediator" class="nc.ui.pubapp.uif2app.view.MouseClickShowPanelMediator">
        <property name="listView" ref="billListView" />
        <property name="showUpComponent" ref="billForm" />
        <property name="hyperLinkColumn" value="billno" />
    </bean>
    <!-- 单据号 -->
    <!-- 	<bean id="billCodeMediator" class="nc.ui.pubapp.bill.BillCodeMediator" init-method="initUI"> -->
    <!-- 		<property name="billForm" ref="billForm"></property> -->
    <!-- 		<property name="billCodeKey" value="billno"></property> -->
    <!-- 		<property name="billType" value="HQSA"></property> -->
    <!-- 	</bean> -->



    <!-- Action部分 ***********************************************************-->
    <!--======= 动作：[newActions] [新增] ===========-->
    <bean id="addAction" class="nc.ui.pubapp.uif2app.actions.AddAction">
        <property name="model"><ref bean="bmModel"/></property>
        <property name="interceptor">
            <bean class="nc.ui.pubapp.uif2app.actions.interceptor.CompositeActionInterceptor">
                <property name="interceptors">
                    <list>
                        <bean class="nc.ui.pubapp.uif2app.actions.interceptor.ShowUpComponentInterceptor">
                            <property name="showUpComponent" ref="billForm" />
                        </bean>
                        <!--此处可以扩展添加自己的拦截器-->
                    </list>
                </property>
            </bean>
        </property>
        <property name="exceptionHandler"><ref bean="exceptionHandler" /></property>
    </bean>

    <bean id="cardRefreshAction" class="nc.ui.pubapp.uif2app.actions.RefreshSingleAction">
        <property name="model" ref="bmModel" />
    </bean>

    <!--======= 动作：[newActions] [修改] ===========-->
    <bean id="editAction" class="nc.ui.pubapp.uif2app.actions.EditAction">
        <property name="model"><ref bean="bmModel"/></property>
        <property name="interceptor">
            <bean class="nc.ui.pubapp.uif2app.actions.interceptor.CompositeActionInterceptor">
                <property name="interceptors">
                    <list>
                        <bean class="nc.ui.pubapp.uif2app.actions.interceptor.ShowUpComponentInterceptor">
                            <property name="showUpComponent" ref="billForm" />
                        </bean>
                        <!--此处可以扩展添加自己的拦截器-->
                    </list>
                </property>
            </bean>
        </property>
        <property name="exceptionHandler"><ref bean="exceptionHandler" /></property>
    </bean>

    <!--======= 动作：[newActions] [删除] ===========-->
    <bean id="deleteScriptAction" class="nc.ui.pubapp.uif2app.actions.pflow.DeleteScriptAction">
        <property name="model"><ref bean="bmModel"/></property>
        <property name="billType" value="HQSA" />
        <property name="filledUpInFlow" value="true" />
        <property name="actionName" value="DELETE" />
        <property name="exceptionHandler"><ref bean="exceptionHandler" /></property>
    </bean>

    <!-- 	<bean id="deleteScriptAction" class="nc.ui.pubapp.uif2app.actions.DeleteAction"> -->
    <!-- 		<property name="model"><ref bean="bmModel"/></property> -->
    <!-- 		<property name="exceptionHandler"><ref bean="exceptionHandler" /></property> -->
    <!-- 	</bean> -->

    <bean id="defaultQueryActionQueryTemplateContainer" class="nc.ui.uif2.editor.QueryTemplateContainer">
        <property name="nodeKey" value="qt" />
        <property name="context"><ref bean="context"/></property>
    </bean>

    <!--======= 动作：[newActions] [查询] ===========-->
    <bean id="defaultQueryAction" class="nc.ui.pubapp.uif2app.query2.action.DefaultQueryAction">
        <property name="model"><ref bean="bmModel"/></property>
        <property name="templateContainer"><ref bean="defaultQueryActionQueryTemplateContainer" /></property>
        <property name="nodeKey" value="qt"></property>
        <property name="dataManager"><ref bean="bmModelModelDataManager"/></property>
        <!-- 		<property name="qryCondDLGInitializer"><ref bean="qryCondDLGInitializer"/></property> -->
        <property name="exceptionHandler"><ref bean="exceptionHandler" /></property>
        <property name="btnName" value="查询" />
    </bean>

    <!-- 	<bean id="qryCondDLGInitializer" class="nc.ui.ftm_ftax.fta_agricloan_info.ace.query.QueryDLGInitializer"/> -->

    <!--======= 动作：[newActions] [刷新] ===========-->
    <bean id="defaultRefreshAction" class="nc.ui.pubapp.uif2app.query2.action.DefaultRefreshAction">
        <property name="model"><ref bean="bmModel"/></property>
        <property name="dataManager"><ref bean="bmModelModelDataManager"/></property>
        <property name="exceptionHandler"><ref bean="exceptionHandler" /></property>
    </bean>

    <!--======= 动作：[newActions] [提交按钮组] ===========-->
    <bean id="commitScriptGroup" class="nc.funcnode.ui.action.GroupAction">
        <property name="code" value="commitScriptGroup" />
        <property name="name" value="提交" />
        <property name="actions">
            <list>
                <ref bean="commitScriptAction" />
                <ref bean="unCommitScriptAction" />
            </list>
        </property>
    </bean>

    <!--======= 动作：[newActions] [提交] ===========-->
    <bean id="commitScriptAction" class="nc.ui.pubapp.uif2app.actions.pflow.CommitScriptAction">
        <property name="model"><ref bean="bmModel"/></property>
        <property name="editor"><ref bean="billForm"/></property>
        <property name="billType" value="HQSA" />
        <property name="filledUpInFlow" value="true" />
        <property name="actionName" value="SAVE" />
        <property name="exceptionHandler"><ref bean="exceptionHandler" /></property>
    </bean>

    <!--======= 动作：[newActions] [收回] ===========-->
    <bean id="unCommitScriptAction" class="nc.ui.pubapp.uif2app.actions.pflow.UnCommitScriptAction">
        <property name="model"><ref bean="bmModel"/></property>
        <property name="editor"><ref bean="billForm"/></property>
        <property name="billType" value="HQSA" />
        <property name="filledUpInFlow" value="true" />
        <property name="actionName" value="UNSAVEBILL" />
        <property name="exceptionHandler"><ref bean="exceptionHandler" /></property>
    </bean>

    <!--======= 动作：[newActions] [审核按钮组] ===========-->
    <bean id="approveScriptGroup" class="nc.funcnode.ui.action.GroupAction">
        <property name="code" value="approveScriptGroup" />
        <property name="name" value="审核" />
        <property name="actions">
            <list>
                <ref bean="approveScriptAction" />
                <ref bean="uNApproveScriptAction" />
            </list>
        </property>
    </bean>

    <!--======= 动作：[newActions] [审批] ===========-->
    <bean id="approveScriptAction" class="nc.ui.pubapp.uif2app.actions.pflow.ApproveScriptAction">
        <property name="model"><ref bean="bmModel"/></property>
        <property name="editor"><ref bean="billForm"/></property>
        <property name="billType" value="HQSA" />
        <property name="filledUpInFlow" value="true" />
        <property name="actionName" value="APPROVE" />
        <property name="exceptionHandler"><ref bean="exceptionHandler" /></property>
    </bean>

    <!--======= 动作：[newActions] [取消审批] ===========-->
    <bean id="uNApproveScriptAction" class="nc.ui.pubapp.uif2app.actions.pflow.UNApproveScriptAction">
        <property name="model"><ref bean="bmModel"/></property>
        <property name="editor"><ref bean="billForm"/></property>
        <property name="billType" value="HQSA" />
        <property name="filledUpInFlow" value="true" />
        <property name="actionName" value="UNAPPROVE" />
        <property name="exceptionHandler"><ref bean="exceptionHandler" /></property>
    </bean>

    <!--======= 动作：[newActions] [预览] ===========-->
    <bean id="metaDataBasedPrintAction" class="nc.ui.pubapp.uif2app.actions.MetaDataBasedPrintAction">
        <property name="model"><ref bean="bmModel"/></property>
        <property name="actioncode" value="Preview"></property>
        <property name="actionname" value="预览"></property>
        <property name="preview" value="true"></property>
        <property name="nodeKey" value="ot" />
        <property name="exceptionHandler"><ref bean="exceptionHandler" /></property>
        <property name="btnName" value="预览" />
    </bean>

    <!--======= 动作：[newActions] [打印] ===========-->
    <bean id="metaDataBasedPrintActiona" class="nc.ui.pubapp.uif2app.actions.MetaDataBasedPrintAction">
        <property name="model"><ref bean="bmModel"/></property>
        <property name="actioncode" value="Print"></property>
        <property name="actionname" value="打印"></property>
        <property name="preview" value="false"></property>
        <property name="nodeKey" value="ot" />
        <property name="exceptionHandler"><ref bean="exceptionHandler" /></property>
        <property name="btnName" value="打印" />
    </bean>

    <!--======= 动作：[newActions] [输出...] ===========-->
    <bean id="outputAction" class="nc.ui.pubapp.uif2app.actions.OutputAction">
        <property name="model"><ref bean="bmModel"/></property>
        <property name="editor"><ref bean="billForm"/></property>
        <property name="nodeKey" value="ot" />
        <property name="exceptionHandler"><ref bean="exceptionHandler" /></property>
    </bean>

    <!--======= 动作：[newActions] [查看审批意见] ===========-->
    <bean id="pFApproveStatusInfoAction" class="nc.ui.pubapp.uif2app.actions.pflow.PFApproveStatusInfoAction">
        <property name="model"><ref bean="bmModel"/></property>
        <property name="billType" value="HQSA" />
        <property name="exceptionHandler"><ref bean="exceptionHandler" /></property>
    </bean>

    <!--======= 动作：[newActions] [保存] ===========-->
    <!-- 	<bean id="saveScriptAction" class="nc.ui.pubapp.uif2app.actions.pflow.SaveScriptAction"> -->
    <!-- 		<property name="model"><ref bean="bmModel"/></property> -->
    <!-- 		<property name="editor"><ref bean="billForm"/></property> -->
    <!-- 		<property name="billType" value="HQSA" /> -->
    <!-- 		<property name="filledUpInFlow" value="true" /> -->
    <!-- 		<property name="actionName" value="SAVEBASE" /> -->
    <!-- 		<property name="validationService" ref="saveValidateService" /> -->
    <!-- 		<property name="exceptionHandler"><ref bean="exceptionHandler" /></property> -->
    <!-- 	</bean> -->

    <bean id="saveScriptAction" class="nc.ui.ftpub.study.action.AceSaveAction">
        <!-- 	<bean id="saveScriptAction" class="nc.ui.pubapp.uif2app.actions.SaveAction"> -->
        <property name="model"><ref bean="bmModel"/></property>
        <property name="editor"><ref bean="billForm"/></property>
        <!-- 		<property name="validationService" ref="saveValidateService" /> -->
        <property name="exceptionHandler"><ref bean="exceptionHandler" /></property>
    </bean>


    <!--======= 动作：[newActions] [取消] ===========-->
    <bean id="cancelAction" class="nc.ui.pubapp.uif2app.actions.CancelAction">
        <property name="model"><ref bean="bmModel"/></property>
        <property name="editor"><ref bean="billForm"/></property>
        <property name="exceptionHandler"><ref bean="exceptionHandler" /></property>
    </bean>


    <!--======= 动作：[newActions] [测试按钮] ===========-->
    <bean id="defAction" class="nc.ui.ftpub.study.action.DefAction">
        <property name="model"><ref bean="bmModel"/></property>
        <property name="exceptionHandler"><ref bean="exceptionHandler" /></property>
    </bean>
    <!--分隔按钮-->
    <bean id="separatorAction" class="nc.funcnode.ui.action.SeparatorAction" />

    <bean id="exceptionHandler" class="nc.ui.uif2.DefaultExceptionHanler">
        <constructor-arg><ref bean="container"/></constructor-arg>
        <property name="context"><ref bean="context" /></property>
    </bean>

    <!-- 批量保存校验服务类 -->
    <!--保存校验 -->
    <!--     <bean id="saveValidateService" class="nc.ui.pubapp.uif2app.validation.CompositeValidation"> -->
    <!--         <property name="validators"> -->
    <!-- 	        <list> -->
    <!-- 	             <bean class="nc.ui.ftpub.study.validate.SaveRuleValidation"> -->
    <!-- 	             </bean> -->
    <!-- 	        </list> -->
    <!--         </property> -->
    <!--     </bean> -->
</beans>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499

# Client 的 Action 类

Action 类类似于 Spring 的 Controller，专门处理前端发送的请求，并分配到 Service 类。Action 位于 Client 模块下。

这里只是写了保存的 Action 类，实际还有其他的 Action 类，如增删改。

import java.awt.event.ActionEvent;

import nc.bs.framework.common.NCLocator;
import nc.ui.pubapp.uif2app.actions.SaveAction;
import nc.ui.uif2.UIState;
import nc.ui.uif2.model.HierachicalDataAppModel;
import nc.vo.ftpub.studydemokbt.AggStudyEntitykbt;
import nc.vo.ftpub.studydemokbt.itf.IStudyKbtClientService;


public class AceSaveAction extends SaveAction {

	public AceSaveAction() {
		super();
	}

	public void doAction(ActionEvent e) throws Exception {

		Object value = getEditor().getValue();

		validate(value);

		if(getModel().getUiState()==UIState.ADD){
			doAddSave(value);
		}else if(getModel().getUiState()==UIState.EDIT){
			doEditSave(value);
		}

		showSuccessInfo();
	}


	protected void doEditSave(Object value) throws Exception {
//		getModel().update(value);
		IStudyKbtClientService service = NCLocator.getInstance().lookup(IStudyKbtClientService.class);
		service.update(new AggStudyEntitykbt[]{(AggStudyEntitykbt) value}, null);
		getModel().setUiState(UIState.NOT_EDIT);
		getModel().setOtherUiState(UIState.NOT_EDIT);
	}


	protected void doAddSave(Object value) throws Exception {
//		Object returnObj = getModel().add(value);
		IStudyKbtClientService service = NCLocator.getInstance().lookup(IStudyKbtClientService.class);
		AggStudyEntitykbt[] returnObjArr = service.insert(new AggStudyEntitykbt[]{(AggStudyEntitykbt) value}, null);
		getModel().setUiState(UIState.NOT_EDIT);
		getModel().setOtherUiState(UIState.NOT_EDIT);
		if(getModel() instanceof HierachicalDataAppModel)
			((HierachicalDataAppModel)getModel()).setSelectedData(returnObjArr[0]);

	}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52

查询的 Action

package nc.ui.ftpub.study.serviceproxy;

import nc.bs.framework.common.NCLocator;
import nc.ui.pubapp.uif2app.query2.model.IQueryService;
import nc.ui.querytemplate.querytree.IQueryScheme;
import nc.vo.ftpub.studydemokbt.itf.IStudyKbtClientService;

public class AceStudyKbtClientServiceProxy implements IQueryService {

	@Override
	public Object[] queryByQueryScheme(IQueryScheme queryScheme) throws Exception {
		IStudyKbtClientService service = NCLocator.getInstance().lookup(IStudyKbtClientService.class);
		return service.query(queryScheme);
	}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

# public 的 Service 接口

Service 接口位于 public模块下。

public interface IStudyKbtClientService {
	// 删除
    public void delete(AggStudyEntitykbt[] clientFullVOs, AggStudyEntitykbt[] originBills) throws BusinessException;
	// 添加
    public AggStudyEntitykbt[] insert(AggStudyEntitykbt[] clientFullVOs, AggStudyEntitykbt[] originBills) throws BusinessException;
	// 修改
    public AggStudyEntitykbt[] update(AggStudyEntitykbt[] clientFullVOs, AggStudyEntitykbt[] originBills) throws BusinessException;
	// 查询
    public AggStudyEntitykbt[] query(IQueryScheme queryScheme) throws BusinessException;
}
1
2
3
4
5
6
7
8
9
10
11

# private 的 Service 实现类

因为 Service 实现类与数据库交互所以放在 private 模块下，提高安全性。

public class StudyKbtClientImpl extends AceStudyKbtClientImpl implements IStudyKbtClientService {
	@Override
	public void delete(AggStudyEntitykbt[] clientFullVOs,
			AggStudyEntitykbt[] originBills) throws BusinessException {
		super.pubdeleteBills(clientFullVOs, originBills);
	}

	@Override
	public AggStudyEntitykbt[] insert(AggStudyEntitykbt[] clientFullVOs,
			AggStudyEntitykbt[] originBills) throws BusinessException {
		return super.pubinsertBills(clientFullVOs, originBills);
	}

	@Override
	public AggStudyEntitykbt[] update(AggStudyEntitykbt[] clientFullVOs,
			AggStudyEntitykbt[] originBills) throws BusinessException {
		return super.pubupdateBills(clientFullVOs, originBills);
	}

	@Override
	public AggStudyEntitykbt[] query(IQueryScheme queryScheme)
			throws BusinessException {
		return super.pubquerybills(queryScheme);
	}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

下面是实际的处理实现类，上面的流程最终都汇集在这个类。

public class AceStudyKbtClientImpl {


	// 新增
	public AggStudyEntitykbt[] pubinsertBills(AggStudyEntitykbt[] clientFullVOs,
			AggStudyEntitykbt[] originBills) throws BusinessException {
		//try {
			// 数据库中数据和前台传递过来的差异VO合并后的结果
			//BillTransferTool<AggStudyEntitykbt> transferTool = new BillTransferTool<AggStudyEntitykbt>(clientFullVOs);
			// 调用BP
			//AceStudyClientInsertBP action = new AceStudyClientInsertBP();
			//AggStudyEntitykbt[] retvos = action.insert(clientFullVOs);
			// 构造返回数据
			//return transferTool.getBillForToClient(retvos);
		//} catch (Exception e) {
			//ExceptionUtils.marsh(e);
		//}

		BaseDAO dao = new BaseDAO();
		String code = clientFullVOs[0].getParentVO().getCode();
		String name = clientFullVOs[0].getParentVO().getName();
		double id = Math.random() * 10;
		StringBuffer sql = new StringBuffer();
		SQLParameter sqlParamter = new SQLParameter();

		sql.append("INSERT INTO bd_tang_lsp(PK_BD_TANG_LSP,CODE,NAME) VALUES (?,?,?)");
		sqlParamter.addParam(id);
		sqlParamter.addParam(code);
		sqlParamter.addParam(name);

		dao.executeUpdate(sql.toString(), sqlParamter);
		return null;
	}

	// 删除
	public void pubdeleteBills(AggStudyEntitykbt[] clientFullVOs,
			AggStudyEntitykbt[] originBills) throws BusinessException {
		//try {
			// 调用BP
			//new AceFta_agricloan_infoDeleteBP().delete(clientFullVOs);
		//} catch (Exception e) {
			//ExceptionUtils.marsh(e);
		//}
		BaseDAO dao = new BaseDAO();
		String code = clientFullVOs[0].getParentVO().getCode();
		String name = clientFullVOs[0].getParentVO().getName();
		double id = Math.random() * 10;
		StringBuffer sql = new StringBuffer();
		SQLParameter sqlParamter = new SQLParameter();

		sql.append("DELETE bd_tang_lsp WHERE PK_BD_TANG_LSP = '?'");
		sqlParamter.addParam(id);

		//dao.executeUpdate(sql.toString(), sqlParamter);
	}

	// 修改
	public AggStudyEntitykbt[] pubupdateBills(AggStudyEntitykbt[] clientFullVOs,
			AggStudyEntitykbt[] originBills) throws BusinessException {
		//try {
			// 加锁 + 检查ts
			//BillTransferTool<AggStudyEntitykbt> transferTool = new BillTransferTool<AggStudyEntitykbt>(clientFullVOs);
			//AceFta_agricloan_infoUpdateBP bp = new AceFta_agricloan_infoUpdateBP();
			//AggStudyEntitykbt[] retvos = bp.update(clientFullVOs, originBills);
			// 构造返回数据
			//return transferTool.getBillForToClient(retvos);
		//} catch (Exception e) {
			//ExceptionUtils.marsh(e);
		//}

		BaseDAO dao = new BaseDAO();
		String code = clientFullVOs[0].getParentVO().getCode();
		String name = clientFullVOs[0].getParentVO().getName();
		double id = Math.random() * 10000;
		StringBuffer sql = new StringBuffer();
		SQLParameter sqlParamter = new SQLParameter();

		sql.append("UPDATE bd_tang_lsp SET CODE = ? WHERE PK_BD_TANG_LSP = '1001ZZ10000000018QCW'");

		sqlParamter.addParam(code);
		dao.executeUpdate(sql.toString(), sqlParamter);
		return null;
	}

	public AggStudyEntitykbt[] pubquerybills(IQueryScheme queryScheme)
			throws BusinessException {
		//AggStudyEntitykbt[] bills = null;
		//try {
			//this.preQuery(queryScheme);
			//BillLazyQuery<AggStudyEntitykbt> query = new BillLazyQuery<AggStudyEntitykbt>(AggStudyEntitykbt.class);
			//bills = query.query(queryScheme, null);
		//} catch (Exception e) {
			//ExceptionUtils.marsh(e);
		//}
		BaseDAO dao = new BaseDAO();
		StringBuffer sql = new StringBuffer();
		sql.append("select code,name,pk_group,pk_org,pk_org,creator,creationtime id from org_orgs where dr = 0");
		if(null != queryScheme.getWhereSQLOnly() && queryScheme.getWhereSQLOnly().trim().length() > 0){
			sql.append(" and ");
			sql.append(queryScheme.getWhereSQLOnly());
		}
		List<StudyEntitykbt> list = (List<StudyEntitykbt>) dao.executeQuery(sql.toString(), new BeanListProcessor(StudyEntitykbt.class));

		AggStudyEntitykbt[] bills = null;
		if(null != list && list.size() > 0 ){
			bills = new AggStudyEntitykbt[list.size()];
			for (int index = 0; index < bills.length; index++) {
				bills[index] = new AggStudyEntitykbt();
				bills[index].setParentVO(list.get(index));
			}
		}
		return bills;
	}

	/**
	 * 由子类实现，查询之前对queryScheme进行加工，加入自己的逻辑
	 *
	 * @param queryScheme
	 */
	protected void preQuery(IQueryScheme queryScheme) throws BusinessException {

	}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123

# 注册 Service

最后一步还需要注册 Service 的接口和实现类，让系统知道位置，并且配置事务、单例等信息。

在组件的 META-INF 文件下创建一个 upm 文件

<?xml version="1.0" encoding="gb2312"?>
<module name="emm">
	<public>
		<component priority="0" singleton="true" remote="true" tx="CMT" supportAlias="true">
			<interface>nc.vo.ftpub.studydemokbt.itf.IStudyKbtClientService</interface>
			<implementation>nc.impl.StudyKbtClientImpl</implementation>
		</component>
	</public>
</module>
1
2
3
4
5
6
7
8
9

结构如图：

image-20220304093217076

编辑此页 (opens new window)
#YonYou
更新时间: 2023/10/23, 10:58:52
YonYou - 开发流程

←

最近更新
01
技术随笔 - Element Plus 修改包名 原创
11-02
02
Reactor - 扩展性
11-02
03
Reactor - 最佳实践
11-02
更多文章>
Theme by Vdoing | Copyright © 2021-2024 Young Kbt | blog
桂ICP备2021009994号
